Product Overview

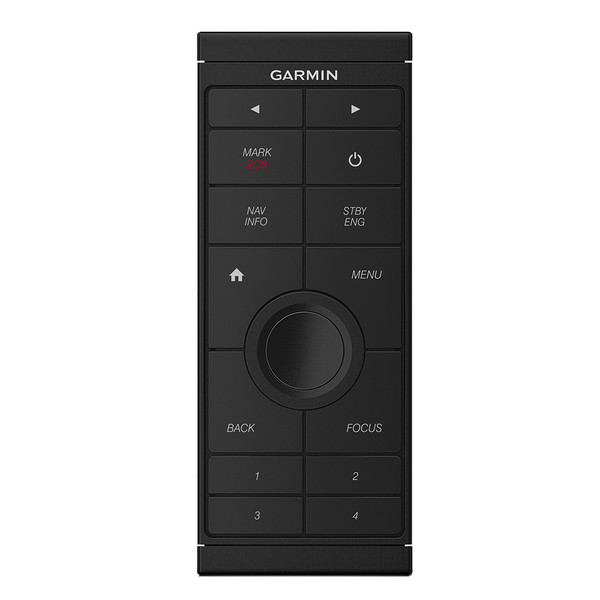

GARMIN GRID 20 VERTICAL
Model: 0100201100- Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
- 360-degree, all-in-one joystick with a rotary knob and push-to-select button
- Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
- Four favourite keys can be designated to restore your system to a previously saved configuration
- Allows wired or wireless installation options
You don't have to stand for hours at the helm. The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate four favourite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there's also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain's chair.
Specifications| Weight | 179 g |
| Temperature range | From -15° to 70°C |
| Material | Fully gasketed, high-impact plastic |
| Water rating | IPX7 |
| Compass-safe distance | 114 Mm |
| Power input | NMEA 2000 |
| Wired power (with included power cable) | |
| Input power | 9-32 V DC |
| Fuse | 1.0 Amp, Fast Blow |
| Maximum power usage at 9 V DC | 1.5 W |
| Typical current draw at 12 V DC | 40 mA |
| Maximum current draw at 12 V DC | 120 mA |
| Dimensions | 14.1 x 5.6 x 6.8 cm |
What's in the Box:
- GRID 20
- Mounting hardware
- Power cable
- Documentation
