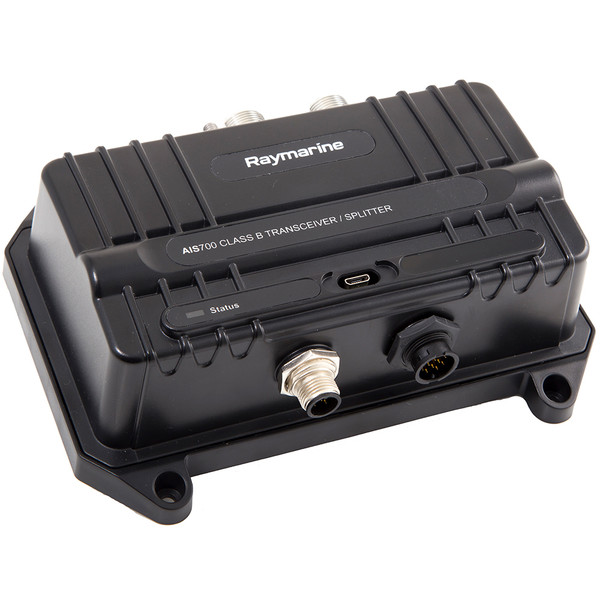

Raymarine AIS700 Class B AIS with Splitter

Model: E70476

Full transmit and receive AIS for enhanced situational awareness and safety
Latest SO-TDMA networking for longer range and faster performance
Built-in antenna splitter simplifies installation with existing VHF radio antenna
NMEA2000, NMEA0183, PC and SeaTalkng Compatible
Software or hardware switchable Silent Mode for enhanced security when needed

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

Specifications

Evironmental
Operating temperature	-15°C to +55°C
Storage temperature	-20°C to +75°C
Water ingress	IPX6 and IPX7
Humidity	Up to 93% @ 40°C
Power
Power Supply	12v and 24 nominal
Power Consumption	<3W
<3W	3A
Load Equivalency Number	1 LEN
RF Specifications
DSC Receiver	Implemented by time sharing with one TDMA receiver
Receiver 1 band	156.025 MHz to 162.025 MHz (in 25KHz steps)
Receiver 2 band	156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter band	156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter specification	To meet IEC 62287-2 relevant sections
Receiver specification	To meet IEC 62287-2 relevant sections
Transceiver specification	To meet IEC 62287-2 relevant sections
GPS receiver	u-blox MAX-M8W
GPS receiver channels	72 channels
GPS Cold start acquisition time	26s nominal
Positional source	GPS & GLONASS
AIS performance	5W SOTDMA
External Connection
VHF antenna connector type	SO-239 co-axial
VHF radio connector type	SO-239 co-axial
GNSS antenna connector	50 Ohm TNC co-axial
NMEA2000	DeviceNet male
USB	Micro-B
External interface isolation	NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification.
NMEA0183 interface 1 (MFD connection)	NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS.
NMEA0183 interface 2 (NMEA0183 instrument connection)	NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate
USB interface (PC connection)	Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud
