Raymarine Instrument, Wind, i60, w/Masthead Unit (E70150)

(No reviews yet) Write a Review
MSRP: $969.99
$819.99
(You save $150.00 )
SKU:
wzm20660
UPC:
723193769218
Condition:
New
Weight:
6.30 LBS
Shipping:
Free Shipping

Product Overview

Raymarine i60 Instrument Displays

Stylish displays for sailboaters!

The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Features



  • Large analogue dials
  • Red backlighting for improved visibility
  • SeaTalk and SeaTalkng interfaces
  • NMEA2000 (compatible) interface
  • Built-in transducer interface
  • 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
  • Large controls for ease of use at sea
  • Low power consumption
  • Multiple data source support eliminates potential data conflicts
  • Front mounted design for simple installation

Raymarine i60 Instrument Displays

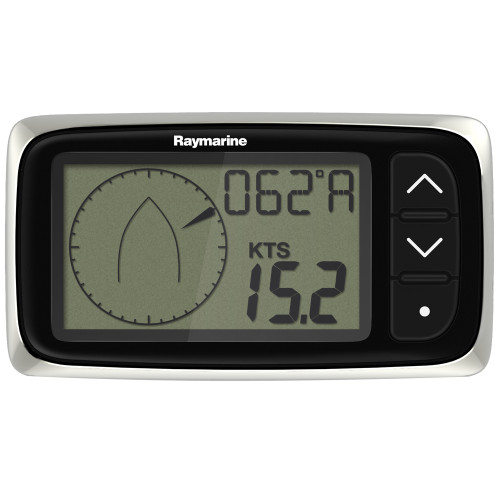

  Raymarine i60 Wind Instrument Display
  • Analogue and digital data
  • Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data)



Raymarine i60 Close Hauled Wind Instrument Display
  • Magnified 20° - 60° display
  • The perfect instrument when a single degree can make all the difference
Models:

i60 Wind

i60 Close Haul Wind

E70061

E70062



Nominal Voltage 12V DC
Operating Voltage

Range

10 - 16V DC
Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature Range -20°C to +55°C
Storage Temperature -30°C to +70°C
Relative Humidity up to 93%
Waterproofing Standard IPX6
Connections 2 x SeaTalkng and transducers
Conformance Europe 2004/108/EC
