Product Overview

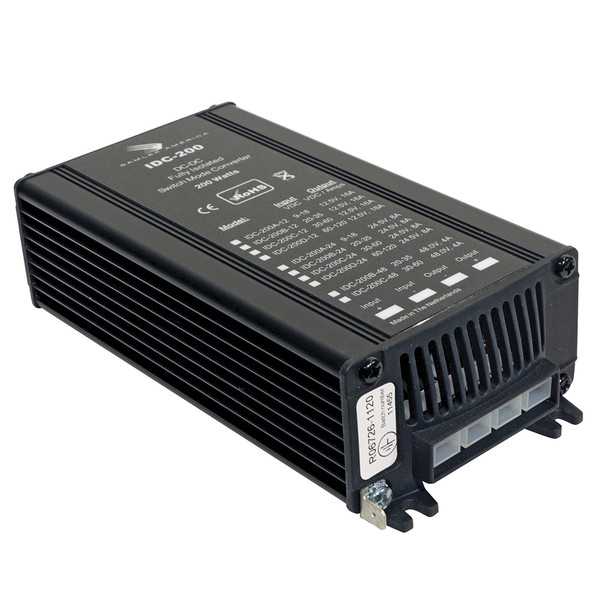

200W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 24V Output
IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-200A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Features:
- Fully Isolated
- Short Circuit Protected
- Current Limited
- CE Approved
- 2 Year Warranty
Specifications:
- Input: 9.2-18 VDC
- Output: 24 VDC
- Watts: 200
- Amps: 8 Amps
- Weight: 1.5 (lbs)
- Weight: 0.68 (kg)
- Dimensions: 6.9 x 3.5 x 1.9 (in)
- Dimensions: 17.5 x 8.9 x 4.8 (cm)
- Safety: CE
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 24 Volt lighting systems
- AM/FM sound systems
