Product Overview

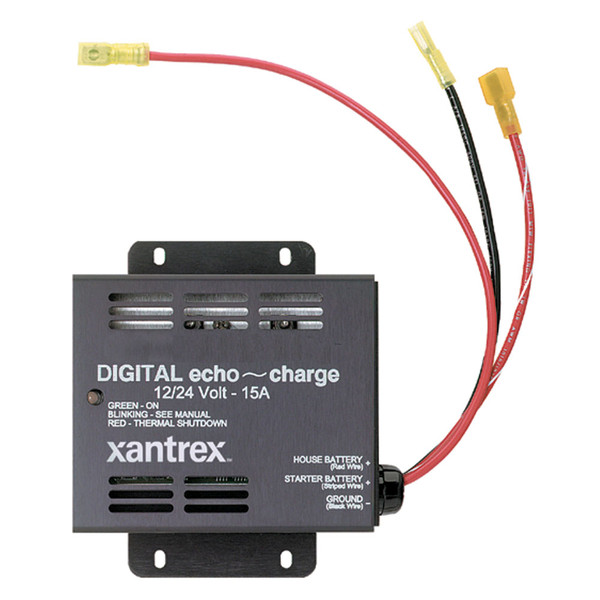

Xantrex Echo Charge Auxiliary Charger
Model: 82-0123-01- 15 A maximum charge current
- Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
- Automatically switches on/off without affecting the in-house battery bank or over-charging
- Utilizes excess current from the primary charging source
- Built-in thermal and over-current circuits
- Reverse polarity protection
- Easy three wire installation
Xantrex’ digital echo~charge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echo~charge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echo~charge is limited to 15 amps.
Specifications| Switch ON voltage (12 VDC mode) | 13.0 VDC |
| Switch ON voltage (24 VDC mode) | 26.0 VDC |
| Output amps | 15.0 A (maximum) |
| Voltage limiting (12 VDC mode) | 14.4 VDC ±1% |
| Voltage limiting (24 VDC mode) | 28.8 VDC ±1% |
| Dimensions (HxWxD) | 5.5 x 4.5 x 1.25" |
