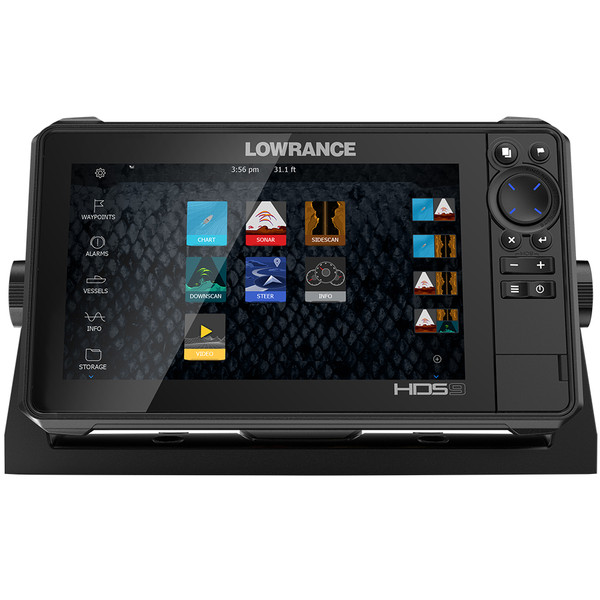

Lowrance HDS-9 Live MFD, w/ AI 3-In-1 Transducer (000-14422-001)

(No reviews yet) Write a Review
MSRP: $2,099.00
$1,099.99
(You save $999.01 )
SKU:
wzm70766
UPC:
9420024171899
Condition:
New
Weight:
12.50 LBS
Shipping:
Free Shipping

Currently Out of Stock

Product Overview

Lowrance HDS-9 Live MFD

Model: 00014422001
  • NEW! Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan)
  • Active Imaging 2-in-1 ready
  • LiveSight™ real-time sonar compatible
  • Smartphone notifications
  • C-MAP Genesis Live onscreen mapping
  • StructureScan® 3D with Active Imaging enhancements - Coming Fall 2018
  • High-performance dual-core processor
  • FishReveal Smart Target View
  • Full high-definition HDS SolarMAX™ HD multi-touch screen with the widest range of viewing angles — viewable even through polarized sunglasses
  • Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000-plus lakes
  • C-MAP Easy Routing, Navionics Autorouting capability
  • Dual-Channel CHIRP — dual sonar-range coverage from the same transducer
  • Live Network Sonar — cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
  • Wireless and Bluetooth® connectivity
  • Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
  • Enhanced Surface Clarity lets you see more fish targets near the surface
  • Quick Access Control Bar provides one—touch access to system controls
  • Built-in CHIRP and Broadband Sounder
  • SmartSteer™ control for Xi5 Trolling Motor and Outboard Pilot
  • Radar and SonicHub®2 audio server connectivity
  • NMEA 2000® engine support
  • Optional mapping upgrades include C-MAP, Navionics® and more

The Lowrance HDS-9 LIVE with Active Imaging 3-1 Transducer offers the best collection of innovative sonar features available, including Active Imaging™, StructureScan® 3D with Active Imaging, FishReveal™ and LiveSight™ sonar — plus exciting functionality like C-MAP® Genesis Live mapping and LiveCast™ smartphone integration.

Full high-definition SolarMAX™ HD multi-touch screen - Preloaded C-MAP® US Enhanced mapping. Compatible with Active Imaging™, StructureScan® 3D with Active Imaging and LiveSight™ real-time sonar. Includes wireless connectivity, Ethernet, NMEA 2000®, LiveCast™ smartphone Integration + ultimate integration capability. Includes Active Imaging 3-in-1 Transducer. Ultra-clear SolarMAX™ HD multi-touch display - GPS with preloaded C-MAP® US Enhanced mapping. Compatible with Active Imaging™, StructureScan® 3D with Active Imaging and LiveSight™ real-time sonar. Includes wireless connectivity, Ethernet, NMEA 2000® + ultimate integration capability. Includes Active Imaging 3-in-1 Transducer.

Specifications
Resolution1280 x 720
Brightness> 1200 nits
Type9" IPS
Touch ScreenMulti-Touch
Viewing Angle80° top/bottom, 80° left/right
Supply Voltage12 V DC (10 - 17 V DC min - max)
Power Consumption - MAX40.02 W (2.9 A at 13.8 V DC)
Recommended Fuse4A
Operating Temp Range-15°C to +55°C (5°F to 131°F)
Storage Temp Range-20°C to +60°C (4°F to 140°F)
Waterproof RatingIPX6 and IPX7
NMEA 20001 port (Micro-C)
NMEA 01831 port (In Power Cable)
Ethernet2 ports
HDMI Video InN/A
Analog Video In1 port (optional cable)
USBN/A
Card Slots2 slots microSD
WirelessBuilt-in 802.11 b/g/n
BluetoothBluetooth 4.0 with support for Bluetooth Classic
