Product Overview

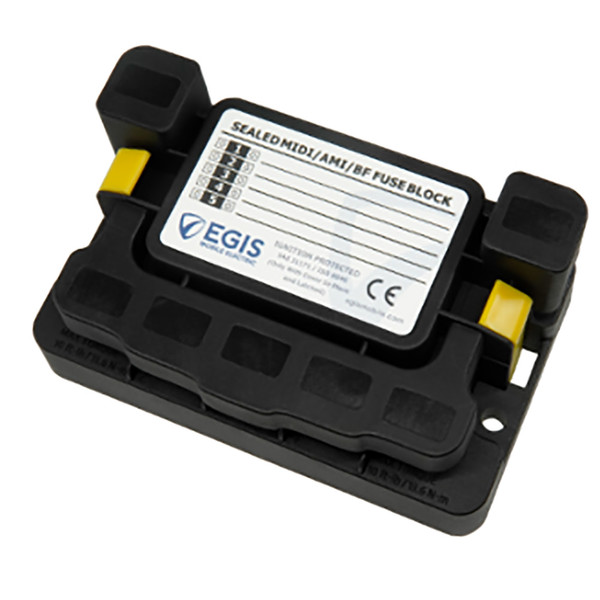

MIDI 5x Fuse Block with Sealed Cover
- Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
- Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
- Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions
Features:
- Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
- Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
- Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.
Specifications:
- Total Continuous Current Amps: 500
- Max MIDI?AMI Fuse Value (Amps): 200
- Ingress Protection Rating: IP67
- Ignition Protected (SEA J1171)? Yes
- Output Stud Size: M6
- Input Stud Size: M8
